Zycoo Z2GSM - Module de 2 ports GSM pour le Zycoo CooVox U50 U80 et U100

Chargement...

-15%

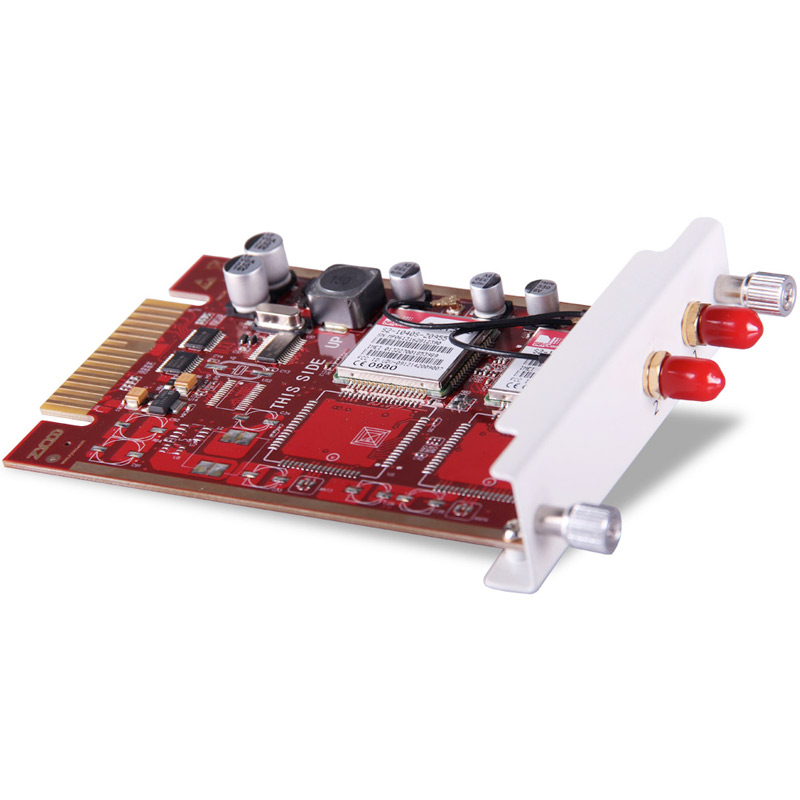

Module de 2 ports GSM pour le Zycoo CoVox U50 et U100 Z2GSM

Quantité

Ajouter au panier

Ajouter à ma sélection

Prix Normal : 4 536,00 Dh TTC

Prix :4 200,00 Dh TTC

Prix Promo : 3 862,62 Dh TTC

Hors Taxe : 3 218,85 Dh HT

Economie : 112,23 Dh - 15%

Le module 2GSM supports CooVox-U50 et CooVox-U100 IPBX Systeme Avec puce IAM, Meditel ou Inwi. Chaqu'une a ligne a un LED sur le module LED(Light-Emitting Diode).

Disponibilité : En Stock

Evaluation :

Evaluer ce produit.

Description
Téléchargements
Avis des clients

New Page 1

Description

The 2/4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone Systemfor GSM connection. Each port has one LED(Light-Emitting Diodes).
Designed with SIM900 for global market, SIM900 is a quad-band GSM engine that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.

Fiche Technique

Model No.	2GSM	4GSM
Number of Quad Band GSM channels per module	2	4
External antennas	2	4
SIM Cards	2 total	4 total 2 externally accessible and hot swappable 2 internally accessible
External power supply required	No
Interoperable modules	4FXO 4FXS 4BRI 1PRI
Supported protocols	Voice (2G) SMS
Accessibility	Through Asterisk 1.8x

The 2/4 GSM module supports CooVox-U50/ CooVox-U100 IP Phone Systemfor GSM connection. Each port has one LED(Light-Emitting Diodes), which is assembled on the mainboard.
The Red LED indicates port status:
 Solid Red= Module loading successful
 Blink Red= Channel Ringing
If the LED is off, the GSM module is loading failure.

The Red LED indicates port status:
 Solid Red= TE Model
The Green LED indicates port status:
Solid Green= NT Model
If the LED is off, the module is loading failure.

SIM900 key features

Feature	Implementation
Power supply	Single supply voltage 3.4V-4.5V
Power saving	Typical power consumption is SLEEP mode is 1.5mA(BS-PA-MFRMS=5)
Frequency Bands	SIM900 quad-band:GSM850, EGSM 900, DCS 1800, PCS 1900. The SIM900 can search the 4 frequency bands automatically. Compliant to GSM Phase 2/2+
GSM class	Small MS
Transmitting power	Class 4(2W) at GSM 850 and EGSM 900 Class 1(1W) at DCS 1800 and PCS 1900
Temperature range	Normal operation: -30-+80 degrees Centigrade
